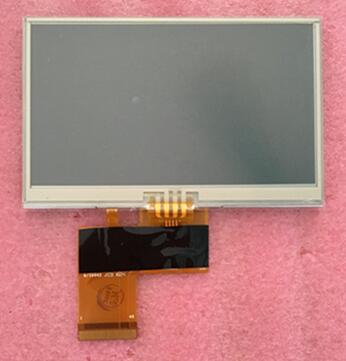

TFT LCDTIANMA 4.3 inch 40P TFT LCD Panel TM043NBHG06 TP
Mouse over to zoom in
- Product 129/186
-
Brand: TIANMA
Model: TM043NBHG06
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×272 WQVGA
Configuration: RGB Vertical Stripe
Surface: Hard Coating (3H)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/70/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: 8S2P WLED
Frame Rate: 60Hz
Interface Type: Parallel RGB (1 ch, 8-bit) , FPC, 40 pins
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Industrial Application Panel, Car Display Panel
