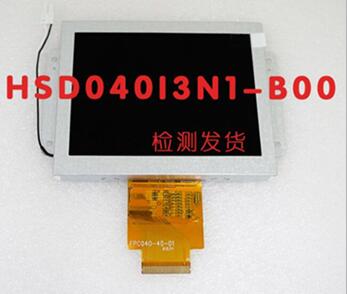

TFT LCDHannStar 4.0 inch TFT LCD Screen HSD040I3N1-B00
Mouse over to zoom in
- Product 38/55
-
Model: HSD040I3N1-B00
Diagonal Size: 4.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 320(RGB)×240 QVGA
Configuration: RGB Vertical Stripe
Surface:
Brightness: 4700 cd/m² (Typ.)
Contrast Ratio: 350:1 (Typ.) (TM)
Response Time: 4/12 (Typ.)(Tr/Td) ms
Viewing Angle: 60/60/60/40 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M 45% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 8-bit) + SPI, FPC, 40 pins
Power Supply: 3.3V (Typ.)
Operating Temperature: -40 ~ 95°C
Storage Temperature: -30 ~ 80 °C
Vibration Level:
Application: Car Display Panel, Outdoor High Brightness
