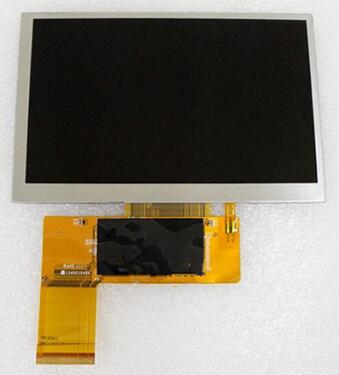

TFT LCDTIANMA 5.0 inch TFT LCD Panel TM050RDH12 800*480
Mouse over to zoom in
- Product 94/100
-
Brand: TIANMA
Model:TM050RDH12
Diagonal Size: 5.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 20 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: No B/L
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 8-bit)
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Portable Navigation Device Panel, Pocket TV Panel, MP4 PMP Panel, MID UMPC Panel
