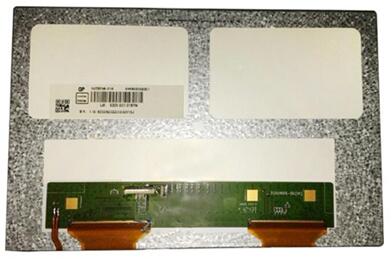

TFT LCDCHIMEI INNOLUX 9 inch TFT LCD Panel ED090NA-01F
Mouse over to zoom in
- Product 34/35
-
Brand: CHIMEI INNOLUX
Model: ED090NA-01F
Diagonal Size: 9.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×800 WXGA
Configuration: RGB Vertical Stripe
Surface:
Brightness: 200 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.) (TM)
Response Time: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/70/50 (Typ.)(CR≥10)
Operating Mode:
Support Color: 262K / 16.7M
Lamp Type: 3S12P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 ch, 6/8-bit) , 51 pins, Connector
Power Supply: 3.3/11.0/20.0/-6.8V (Typ.) (DVDD/AVDD/VGH/VHL)
Operating Temperature: -10 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: Pad & Tablet
