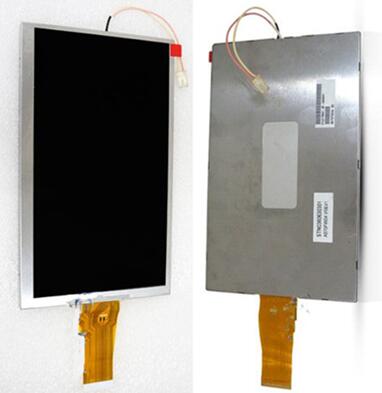

TFT LCDAUO 7.0 inch TFT LCD Screen A070FW04 V0 480*234
Mouse over to zoom in
- Product 350/374
-
Brand: AUO
Model: A070FW04 V0
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×234
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 300:1 (Typ.) (TM)
Response Time: 12/18 (Typ.)(Tr/Td) ms
Viewing Angle: 60/60/40/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M
Lamp Type: 1 pcs CCFL
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Serial RGB (8-bit) + SPI, CCIR656, FPC, 40 pins
Power Supply: 3.3/5.25/12.5/-12.5V (Typ.) (VCC/ACDD/VGH/VGL)
Operating Temperature: 0 ~ 60°C
Storage Temperature: -25 ~ 80 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel
