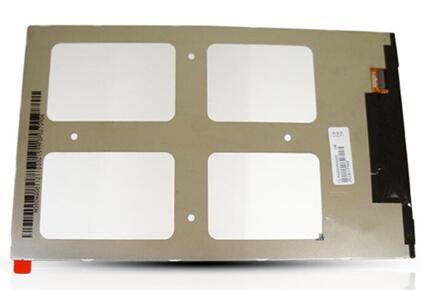

TFT LCDCPT 8.0 inch TFT LCD CLAA080WQ08 XN 800*1280
Mouse over to zoom in
- Product 117/121
-
Brand: CPT
Model: CLAA080WQ08 XN
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×1280 WXGA
Configuration: RGB Vertical Stripe
Luminance: 400 cd/m² (Typ.)
Treatment: Antiglare (Haze 25%), Hard coating (3H)
Response Time: 25 (Typ.)(Tr+Td) ms
Contrast Ratio: 900:1 (Typ.) (TM)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: HFFS, Normally Black, Transmissive
Support Color: 16.7M 53% (CIE1931)
Lamp Type: 7S3P WLED
Frame Rate: 60Hz
Signal Type: MIPI (4 data lanes), Connector, 31 pins
Voltage Supply: 1.8/3.3V (Typ.) (VDDI/VCCI)
Touch Panel: Without
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: Pad & Tablet
