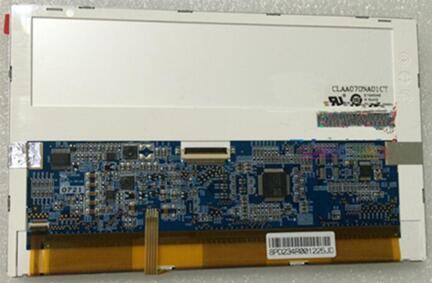

TFT LCDCPT 7.0 inch TFT LCD CLAA070NA01CW 1024*600 TP
Mouse over to zoom in
- Product 353/374
-
Brand: CPT
Model: CLAA070NA01CW
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1024(RGB)×600 WSVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 20 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/40/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K 47% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 ch, 6-bit) , Connector, 30 pins
Power Supply: 3.3V (Typ.)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 95 °C
Application: Netbook PC Panel, MID UMPC Panel, MP4 PMP Panel
