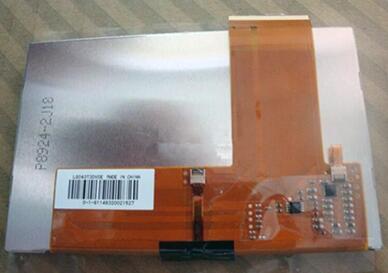

TFT LCDSHARP 4.3 inch TFT LCD LQ043T3DX0E 480*272 TP
Mouse over to zoom in
- Product 183/186
-
Brand: SHARP
Model: LQ043T3DX0E
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×272 WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (2H)
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 30/30 (Typ.)(Tr/Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: TN, Normally Black, Transmissive
Support Color: 16.7M
Lamp Type: 9S1P WLED
Frame Rate: 60Hz
Touch Panel: Yes
Interface Type: TTL (1 ch, 8-bit) , FPC , 50 pins
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: Portable Navigation Device Panel, Pocket TV Panel, MP4 PMP Panel
