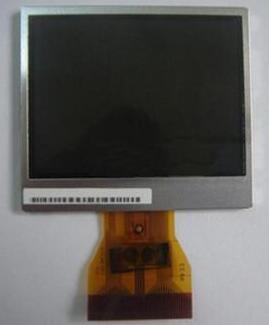

TFT LCDTPO 2.4 inch TFT LCD Screen TD024THEA2 480*240
Mouse over to zoom in
- Product 70/90
-
Model: TD024THEA2
Diagonal Size: 2.4 inch
Type: LTPS TFT-LCD, LCM
Pixel Format: 480×240
Configuration: RGB Delta
Surface: Hard Coating
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 300:1 (Typ.) (TM)
Response Time:
Viewing Angle: 40/40/20/50 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M
Lamp Type: 1pcs WLED
Frame Rate:
Interface Type: Serial RGB (1 ch, 8-bit) + SPI, 40 pins, FPC
Power Supply: 3. 0V (Typ.)
Operating Temperature: -10 ~ 60°C
Storage Temperature: -30 ~ 80 °C
Application: All Digital Still Camera Panel, All Digital Video Camera Panel
