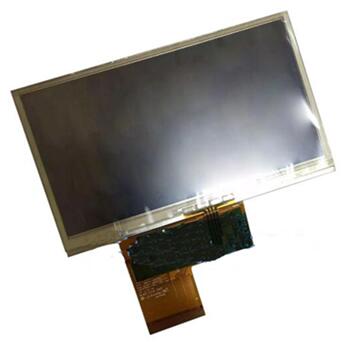

TFT LCDLG 4.3 inch 45P TFT LCD LB043WQ2-TD01 480*272
Mouse over to zoom in
- Product 155/186
-
Brand: LG
Model: LB043WQ2-TD01
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480*272(RGB) WQVGA
Configuration: RGB Horizontal Stripe
Surface: Antiglare
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/65/55 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M
Lamp Type: 10S1P WLED
Frame Rate: 60Hz
Touch Panel: Yes
Interface Type: 45 pins Parallel RGB (1 ch, 8-bit) , FPC
Power Supply: 2.5/3.3V (Typ.)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Portable Navigation Device Panel, Pocket TV Panel, MP4 PMP Panel
