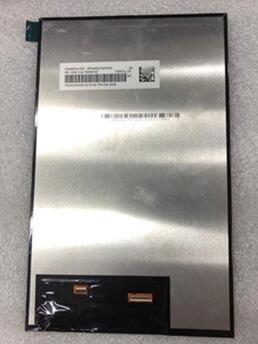

TFT LCDINNOLUX 8.0 inch TFT LCD P080DCA-AZ1 800*1280
Mouse over to zoom in
- Product 121/121
-
Panel Brand: INNOLUX
Panel Model: P080DCA-AZ1
Panel Type: a-Si TFT-LCD, LCM
Panel Size: 8.0 inch
Resolution: 800(RGB)*1280 WXGA
Pixel Format: RGB Vertical Stripe
Display Mode: TN, Normally White, Transmissive
Surface:
Brightness: 0 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M 60% (CIE1931)
Response Rime: 25 (Typ.) (Tr+Td) (ms)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: MIPI (4 data lanes) , 31 pins , Connector
Input Voltage: 1.8/3.3V (Typ.) (VCC/VDDi)
Operating Temperature: -10 – 60 degree
Storage Temperature: -20 – 60 degree
Application: Pad & Tablet
