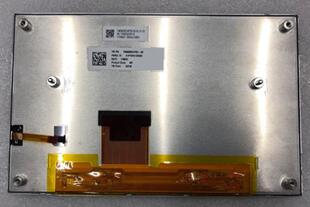

TFT LCDTIANMA 8.0 inch TFT LCD TM080RDHP07 TM080RDH05
Mouse over to zoom in
- Product 119/121
-
Panel Brand: TIANMA
Panel Model: TM080RDHP07
Panel Type: a-Si TFT-LCD, LCM
Panel Size: 8.0 inch
Resolution: 800(RGB)*480 WVGA
Pixel Format: RGB Vertical Stripe
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 600 cd/m2 (Typ.)
Contrast Ratio: 1000:1 (Typ.)
Display Color: 16.7M 71% (CIE1931)
Response Rime: 50 (Typ.) (Tr+Td) (ms)
Viewing Angle: 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 8S2P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit) , 60 pins , FPC
Input Voltage: 3.3/6.0/-6.0/17/-8V (Typ.) (VCC/VDDP/VDDN/VGH/VGL)
Operating Temperature: -30 – 85 degree
Storage Temperature: -40 – 95 degree
Application: Car Display Panel
