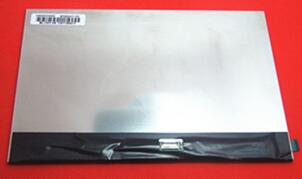

TFT LCD8 inch TFT LCD Panel BP080WX7-100 WXGA 800*1280
Mouse over to zoom in
- Product 112/121
-
Brand: BOE
Model: BP080WX7-100
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×800 WXGA
Configuration: RGB Vertical Stripe
Surface: Glare (Haze 0%), Hard coating (3H)
Brightness: 0 cd/m² (Typ.)
Contrast Ratio: 900:1 (Typ.) (TM)
Response Time: 24 (Typ.)(Tr+Td) ms
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Operating Mode: HFFS, Normally Black, Transmissive
Support Color: 16.7M 55% NTSC
Lamp Type: No B/L
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: MIPI (4 data lanes) , Connector , 31 pins
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 65°C
Storage Temperature: -40 ~ 85 °C
Application: Pad & Tablet Panel
