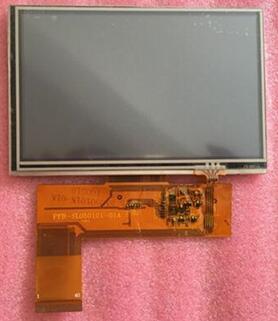

TFT LCD5 inch 40P HD LCD LW500AC9004 SSD1963 800*480 TP
Mouse over to zoom in
- Product 96/100
-
Panel Brand: ChiHsin
Panel Model: LW500AC9004
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 5.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 16.7M
Response Rime: 15/35 (Typ.) (Tr/Td)
Viewing Angle: 70/70/60/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 7S2P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.) (VCC)
RoHS
Application: All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel, All MID UMPC Panel, All Car Display Panel, All Game Machine Panel
