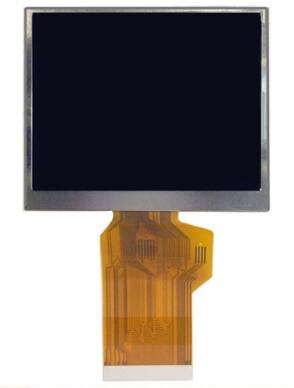

TFT LCDINNOLUX 3.5 inch TFT LCD PT035TN01 V.3 320*240
Mouse over to zoom in
- Product 97/203
-
Panel Brand: INNOLUX
Panel Model: PT035TN01 V.3
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 3.5 inch
Resolution: 320(RGB)*240, QVGA
Display Mode: TN, Normally White, Transmissive
Surface: Harding coating
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 15/20 (Typ.) (Tr/Td) (ms)
Viewing Angle: 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 6S1P WLED
Signal Interface: Digital RGB (8/24-bit), CCIR601/656
Input Voltage: 3.3/5.0/15.0/-10.0V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: Portable Navigation Device Panel, Pocket TV Panel
