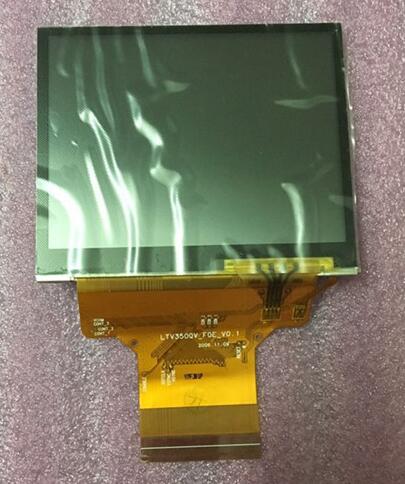

TFT LCDSAMSUNG 3.5 inch TFT LCD LTV350QV-F0E 320*240
Mouse over to zoom in
- Product 90/203
-
Panel Brand: SAMSUNG
Panel Model: LTV350QV-F0E
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 3.5 inch
Resolution: 320(RGB)*240, QVGA
Display Mode: TN, Normally White, TMR
Brightness: 320 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 16.7M (6-bit)
Response Rime: 25 (Typ.)(Tr+Td)
Viewing Angle: 60/60/50/55 (Typ.) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S1P WLED
Signal Interface: Parallel RGB 91 ch, 8-bit)+SPI
Input Voltage: 3.3/4.9/18.0/-10V (Typ.) (VDD/DDVDH/VGH/VGL)
RoHS
Surface: Hard coating (3H)
Application: All Digital Still Camera Panel, All Digital Video Camera Panel, All Portable Navigation Device Panel, All MP4 PMP Panel, All Pocket TV Panel
