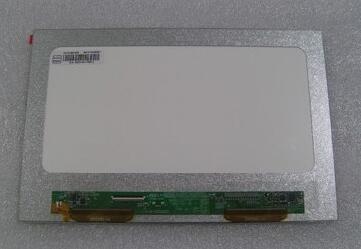

TFT LCD10.1" TFT LCD HJ101NA-02A 1280*800 32001225-01
Mouse over to zoom in
- Product 37/108
-
Panel Brand: CHIMEI INNOLUX
Panel Model: HJ101NA-02A
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1280(RGB)*800, WXGA
Display Mode: TN, Normally White, Transmissive
Surface: Glare (Haze 0%)
Brightness: 300 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 6-bit + Hi-FRC)
Response Rime: 10/15 (Typ.) (Tr/Td)
Viewing Angle: 75/75/75/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Pad Panel
