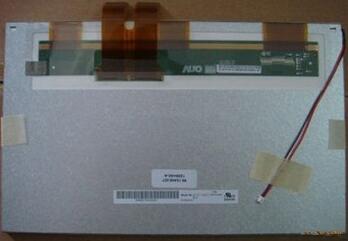

TFT LCDAUO 10.1 inch TFT LCD A101VW01 V1 800*480
Mouse over to zoom in
- Product 40/108
-
Panel Brand: AUO
Panel Model: A101VW01 V1
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 180 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 12/18 (Typ.) (Tr/Td)
Viewing Angle: 65/65/45/65 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S8P WLED
Signal Interface:TTL (1 ch, 6-bit)
Input Voltage: 3.3/8.8/15/-7/3.7V (Typ.) (VCC/AVDD/VGH/VGL/VCOM)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
