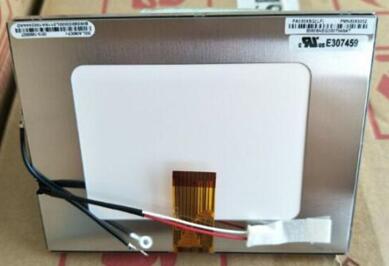

TFT LCDPVI 5.0 inch TFT LCD Screen PA050XSG 320*234
Mouse over to zoom in
- Product 21/100
-
Panel Brand: PVI
Panel Model: PA050XSG
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 5.0 inch
Resolution: 320(RGB)*234
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color:
Response Rime: 15/30 (Typ.) (Tr/Td)
Viewing Angle: 70/70/40/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 1 pcs CCFL
Signal Interface: TFT Specific Analog RGB
Input Voltage: 3.3/3.3/5.0/17/-12.0V (Typ.) (VCC/VDD1/VDD2/VGH/VGL)
RoHS
Application: All Car Display Panel
