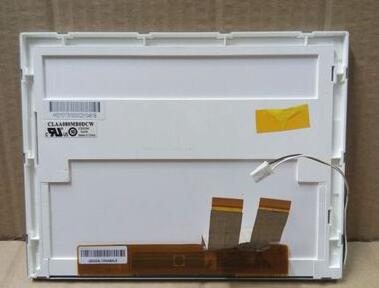

TFT LCDCPT 8.0 inch TFT LCD CLAA080MB0DCW 800*600
Mouse over to zoom in
- Product 107/121
-
Panel Brand: CPT
Panel Model: CLAA080MB0DCW
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 8.0 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 25 (Typ.) (Tr+Td)
Viewing Angle: 70/70/50/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S8P WLED
Signal Interface: TTL (1 ch, 6-bit)
Input Voltage: 3.3/9.6/18/-6V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel, All Industrial Application Panel
