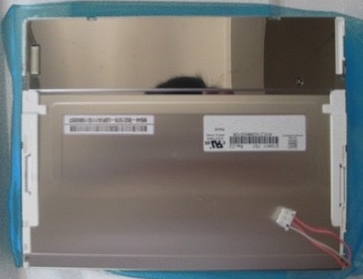

TFT LCDCMO 10.4 inch TFT LCD G104V1-T01 VGA 640*480
Mouse over to zoom in
- Product 32/38
-
Panel Brand: CMO
Panel Model: G104V1-T01
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.4 inch
Resolution: 640(RGB)*480, VGA
Display Mode: Super MVA, Normally Black, Transmissive
Surface: Antiglare (Haze 25%), Hard coating (3H)
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 1500:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 14/9 (Typ.) (Tr/Td)
Viewing Angle: 88/88/88/88(Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 2 pcs CCFL
Signal Interface: CMOS (1 ch, 6-bit)
Input Voltage: 3.3/5.0V (Typ.) (VCC)
RoHS
Application: All Industrial Application Panel, All Car Display Panel
