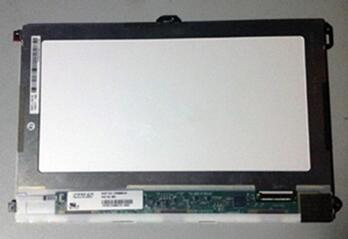

TFT LCDIPS 10.1 inch TFT LCD LP101WX1-SLP2 WXGA 1280*800
Mouse over to zoom in
- Product 82/108
-
Panel Brand: /
Panel Model: LP101WX1-SLP2
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1280(RGB)*800, WXGA
Display Mode: IPS, Normally Black, Transmissive
Active Area: 216.96*135.6 mm
Outline: 229.46*149.2*3.35 mm
Surface: Antiglare
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 35 (Typ.) (Tr+Td)
Viewing Angle: 80/80/80/80 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6-bit)
Input Voltage: 3.3V (Typ.)
Application: All Pad, Tablet Panel
