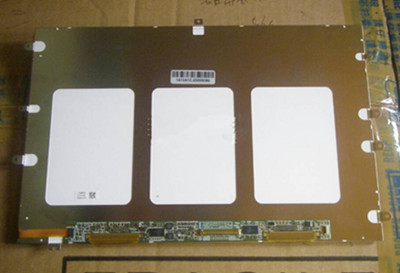

TFT LCD10.1 inch TFT LCD LT101MB02000 WUXGA 1920*1200
Mouse over to zoom in
- Product 30/108
-
Panel Brand: /
Panel Model: LT101MB02000
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1920(RGB)*1200, WUXGA
Display Mode: Normally Black, Transmissive
Active Area: 217.44*135.9 mm
Outline: 228.1*147.5*2.14 mm
Surface: Antiglare
Brightness: 340 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 60/40 (Typ.) (Tr/Td)
Viewing Angle: 70/70/70/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5 strings WLED
Signal Interface: MIPI (4 data lanes)
Input Voltage: 3.3V (Typ.)
Application: All Pad, Tablet Panel
