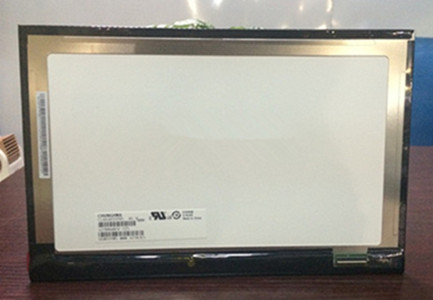

TFT LCDCPT 10.1 inch TFT LCD CLAA101FP05 XG 1920*1200
Mouse over to zoom in
- Product 44/108
-
Panel Brand: CPT
Panel Model: CLAA101FP05 XG
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1920(RGB)*1200, WUXGA
Display Mode: HFFS, Normally Black, Transmissive
Surface: Glare (Haze 0%), Hard coating
Brightness: 370 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 30 (Typ.) (Tr+Td)
Viewing Angle: 89/89/89/89 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5S6P WLED
Signal Interface: MIPI (4 data lanes)
Input Voltage: 3.7V (Typ.)
Application: All Pad, Tablet Panel
