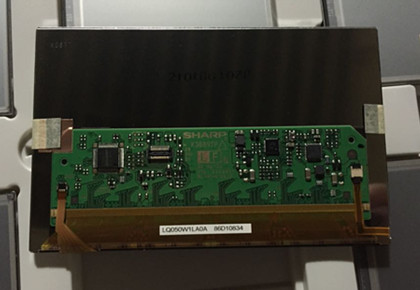

TFT LCDSHARP 5" TFT LCD LQ050W1LA0A LQ0DAS3621 TP
Mouse over to zoom in
- Product 99/100
-
Panel Brand: SHARP
Panel Model: LQ050W1LA0A
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 5.0 inch
Resolution: 1024 (RGB)*600, WSVGA
Display Mode: TN, Normally White, Transmissive
Active Area: 109.1*63.9 mm
Outline: 119*76.3*3.65 mm
Surface: Antiglare, Hard coating (2H)
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 450:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 30 (Typ.) (Tr+Td)
Viewing Angle: 70/70/50/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6-bit)
Input Voltage: 3.3V (Typ.)
Application: All MID UMPC Panel
