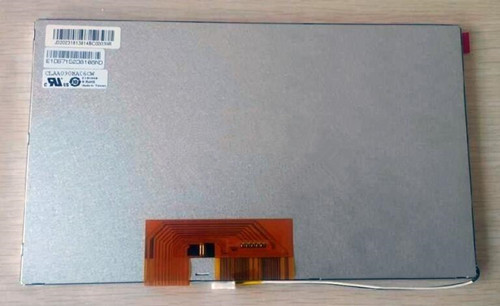

TFT LCDCPT 9.0 inch HD TFT LCD CLAA090NA06CW 73003000851B
Mouse over to zoom in
- Product 29/35
-
Brand: CPT
Model: CLAA090NA06CW
Diagonal Size: 9.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1024(RGB)×600 [WSVGA]
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 500 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K / 16.7M 55% (CIE1931)
Lamp Type: 3S13P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 ch, 6/8-bit) , 40 pins FPC
Power Supply: 3.3/9.6/18.0/-6.0V (Typ.) (DVDD/AVDD/VGH/VGL)
Operating Temperature: -30 ~ 80°C
Storage Temperature: -20 ~ 70 °C
Vibration Level: 2.9G (28.4 m/s²)
Application: All Car Display Panel, All Industrial Application Panel
