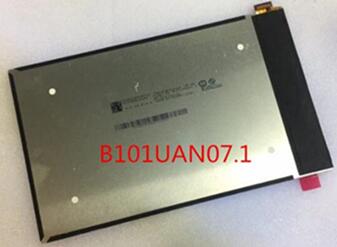

TFT LCDAUO 10.1 inch TFT LCD B101UAN07.1 1200*1920
Mouse over to zoom in
- Product 55/108
-
Brand: AUO
Model: B101UAN07.1
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1200(RGB)×1920 WUXGA
Configuration: RGB Vertical Stripe
Best View on: Symmetry
Contrast Ratio: 1000:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive
Support Color: 16.7M 72% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: All Pad, Tablet Panel
