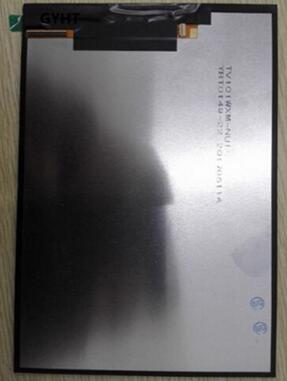

TFT LCD10.1 inch TFT LCD TV101WXM-NU1 WXGA 800*1280
Mouse over to zoom in
- Product 42/108
-
Brand:
Model: TV101WXM-NU1
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×1280 WXGA
Configuration: RGB Vertical Stripe
Surface:
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 1000:1 (Typ.) (TM)
Response Time: 30 (Max.)(Tr+Td)
Viewing Angle: 85/85/85/85 (Min.)(CR≥10)
Operating Mode: ADS, Normally Black, Transmissive
Support Color: 16.7M 60% (CIE1931)
Lamp Type: 3S4P WLED, Without Drive
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: MIPI (4 data lanes). Connector, 42 pins
Power Supply: 1.8/3.3V (Typ.) (IOVCC/VDD)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -10 ~ 60 °C
Application: All Pad & Tablet Panel
