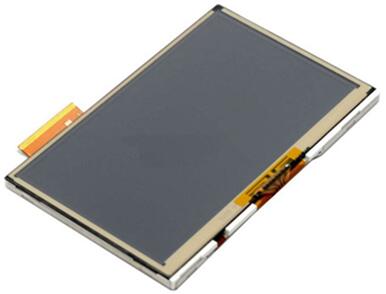

TFT LCDSAMSUNG 4.3 inch TFT LCD LMS430HF17-002 TP
Mouse over to zoom in
- Product 79/186
-
Brand: SAMSUNG
Model: LMS430HF17-002
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480×272(RGB) WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: VA, Normally Black, TMR
Support Color: 16.7M 50% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Interface Type: Parallel RGB (1 ch, 8-bit), FPC, 45 pins
Power Supply: 2.5/3.3V (Typ.) (VDD)
Operating Temperature: -20 ~ 60°C
Storage Temperature: -45 ~ 80 °C
Application: Portable Navigation Device Panel, Pocket TV Panel, MP4 PMP Panel
