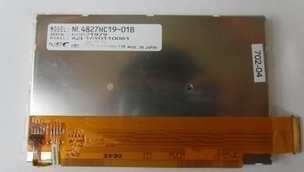

TFT LCD4.3 inch TFT LCD NL4827HC19-01B 480*272 WQVGA
Mouse over to zoom in
- Product 78/186
-
Panel Brand: /
Panel Model: NL4827HC19-01B
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 4.3 inch
Resolution: 480(RGB)*272, WQVGA
Display Mode: TN, Normally White, Transmissive
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 8/17 (Typ.)(Tr+Td)
Viewing Angle: 50/50/70/40 (Typ.)
Frequency: 60 Hz
Lamp Type: 2 strings WLED
Signal Interface: CMOS (1 ch, 6-bit)
Input Voltage: 3.0/5.0/15.0/-15.0V (Typ.) (VCC/VDD/VGON/VGOFF)
RoHS
Surface: Antiglare, Hard coating (3H)
Application: ALL Pocket TV panel, All Portable Navigation Device panel, All MP4 PMP panel
