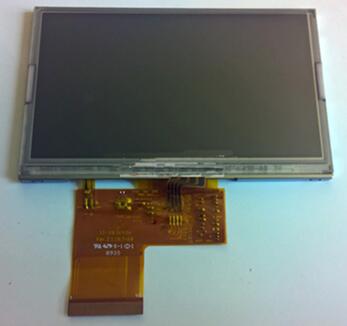

TFT LCDChiHsin 4.3 inch 45P TFT LCD Screen LR430RC9601 TP
Mouse over to zoom in
- Product 77/186
-
Brand: ChiHsin
Model: LR430RC9601
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×272 WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 550:1 (Typ.) (TM)
Response Time: 15/15 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/55/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M
Lamp Type: 10S1P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 45 pins , Parallel RGB (1 ch, 8-bit) , FPC
Power Supply: 3.3V (Typ.) (VCC)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Portable Navigation Device Panel, Pocket TV Panel, MP4 PMP Panel
