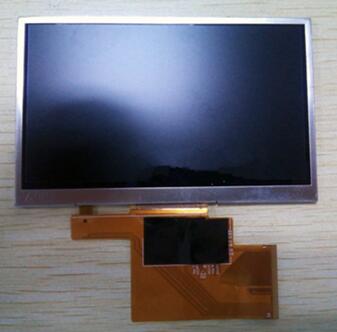

TFT LCDAUO 4.3 inch TFT LCD Screen A043FW03 V2 480*272
Mouse over to zoom in
- Product 76/186
-
Brand: AUO
Model: A043FW03 V2
Diagonal Size: 4.3 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×272 WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 500 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 17/15 (Typ.)(Tr/Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AMVA3, Normally Black, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: 10S1P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 50 pins TTL (1 ch, 8-bit) , FPC
Power Supply: 3.3/3.3V (Typ.) (VDD/VDDIO
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Pocket TV Panel, All MP4 PMP Panel, Industrial Application Panel, Handheld Product Panel
