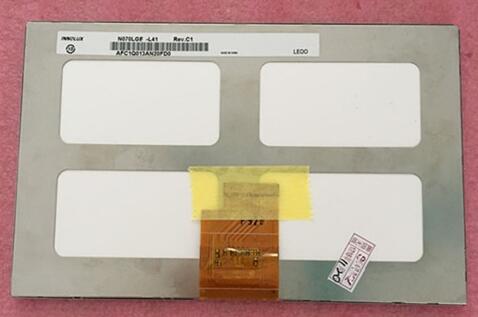

TFT LCDINNOLUX 7 inch HD TFT LCD N070LGE-L41 1024*600
Mouse over to zoom in
- Product 109/374
-
Panel Brand: INNOLUX
Panel Model: N070LGE-L41
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: TN, Normally White, Transmissive
Surface: Glare (Haze 0%), Harding coating (3H)
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 262K / 16.2M (6-bit /6-bit+ Hi-FRC)
Response Rime: 10/15 (Typ.) (Tr/Td) (ms)
Viewing Angle: 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 3S8P WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD//VGH/VGL)
RoHS
Application: All Pad Panel, All MID UMPC Panel, All MP4 PMP Panel
