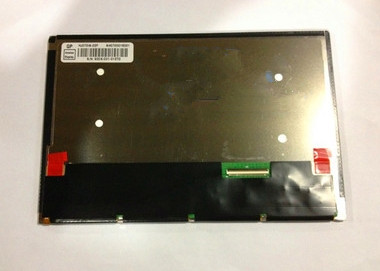

TFT LCDIPS 7 inch HD TFT LCD Panel HJ070IA-02F 1280*800
Mouse over to zoom in
- Product 110/374
-
Panel Brand: CHIMEI INNOLUX
Panel Model: HJ070IA-02F
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1280(RGB)*800, WXGA
Display Mode: IPS, Normally Black, Transmissive
Surface: Harding coating
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 15/20 (Typ.) (Tr/Td) (ms)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 8-bit)
Input Voltage: 3.3/9.74/22.7/-8V (Typ.)(VDD/AVDD/VGH/VGL)
RoHS
Application: All Pad Panel, All MID UMPC Panel
