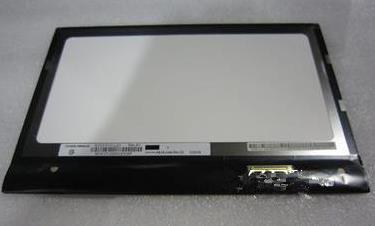

TFT LCD10.1 inch TFT LCD TF300T Panel N101ICG-L21 1280*800
Mouse over to zoom in
- Product 28/108
-
Panel Brand: CHEMEI INNOLUX
Panel Model: N101ICG-L21
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1280(RGB)*800, WXGA
Display Mode: AAS, Normally Black,Transmissive
Surface: Glare (Haze 0%), Harding coating (3H)
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 14/11 (Typ.) (Tr/Td) (ms)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3 strings WLED
Signal Interface: LVDS (1 ch, 6-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Pad Panel
