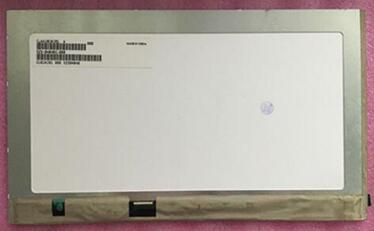

TFT LCDCPT 10.1" TF600 Screen CLAA101WJ01 AO 1366*768
Mouse over to zoom in
- Product 27/108
-
Panel Brand: CPT
Panel Model: CLAA101WJ01
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1366(RGB)*768, WXGA
Display Mode: HFFS, Normally Black, Transmissive
Surface: Hard coating
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 30 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S6P WLED
Signal Interface:
Input Voltage:
RoHS
Application: All Pad Panel
