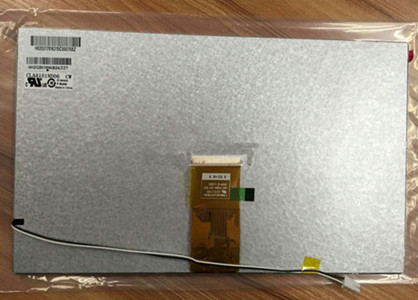

TFT LCDCPT 10.1 inch TFT LCD CLAA101ND06CW 1024*600
Mouse over to zoom in
- Product 26/108
-
Panel Brand: CPT
Panel Model: CLAA101ND06CW
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 600:1 (Typ.)
Display Color: 262K/16.2M (6-bit / 6-bit + FRC)
Response Rime: 25 (Typ.) (Tr+Td)
Viewing Angle: 70/70/70/50 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S7P WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3/9.6/18.0/-6.0 (Typ.) (VDD/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel, All Car Display Panel
