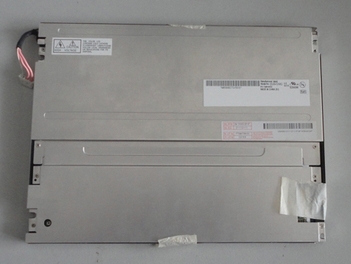

TFT LCDAUO 10.4 inch TFT LCD Panel B104SN02 V0 800*600
Mouse over to zoom in
- Product 34/38
-
Panel Brand: AUO
Panel Model: B104SN02 V0
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.4 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface:
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 35 (Typ.) (Tr+Td)
Viewing Angle: 60/60/40/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 2 pcs CCFL
Signal Interface: LVDS (1 ch, 6-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Laptop Panel
