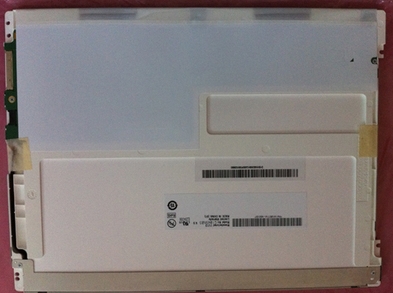

TFT LCDAUO 10.4 inch TFT LCD Panel G104SN03 V5 800*600
Mouse over to zoom in
- Product 35/38
-
Panel Brand: AUO
Panel Model: G104SN03 V5
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.4 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 230 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K / 16.2M (6-bit / 6-bit + FRC)
Response Rime: 25 (Typ.) (Tr/Td)
Viewing Angle: 80/80/60/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Industrial Application Panel
